Why Hardcover Book Covers Warp: Case Making Defects Guide

Hardcover cover warping and bubbling during case making are rarely caused by a single factor. They typically result from an imbalance between adhesive moisture content, grey board moisture absorption, cover material surface properties, and machine open time settings. The most reliable diagnostic approach is to isolate the defect pattern first—cupping, tunneling, or corner lift—then trace it back to the specific material-process interaction producing it. The following guide provides a structured framework for this diagnosis.

What Actually Happens During Case Making

In hardcover case making, a printed or decorative cover material (paper, cloth, leather, or laminated film) is glued to grey board (also called chipboard or binder's board), then folded and wrapped around the board edges in a process called “turning in”. The cover material is typically 100–300 g/m² and the grey board ranges from 1.5 mm to 4.0 mm in caliper depending on the application.

The critical challenge is that two materials with very different moisture behaviors are being bonded together under pressure and heat, then released into the ambient air. Grey board is hygroscopic—it absorbs and releases moisture unevenly across its fibers. Cover materials vary widely in their ability to release trapped air and resist surface tension. When the adhesive introduces additional water into the system, the board and cover respond at different rates.

The Three Defect Patterns and What They Signal

Not all case making defects have the same root cause. Identifying the pattern is the first step.

A single case can show multiple defect patterns, but one usually dominates. Start with the dominant pattern and trace it through the diagnostic chain below.

Defect 1: Board Warping (Cupping and Bowing)

What it looks like: After the case exits the machine and cools, the grey board visibly curves. If placed flat on a table, one or more edges lift off the surface.

Root cause chain:

Warping originates from differential moisture absorption. When water-based adhesive is applied to grey board, the board fibers on the glued side swell. As the adhesive cures, the glued side contracts, pulling the board into a curve.

The severity depends on three interacting variables:

1. Adhesive moisture load — Higher water content in the adhesive means more fiber swelling on the glued side. High-solids, low-moisture adhesive formulations reduce the moisture introduced into the board, but the trade-off is often shorter open time.

2. Grey board density and caliper — Lower-density boards absorb moisture faster and swell more. Thicker boards (3.5–4.0 mm) resist warping better than thin boards (1.5–2.0 mm) because the unglued side provides more counter-force. If your production uses 1.5–2.0 mm board for lightweight calendars or thin notebooks, warping risk is inherently higher.

3. Ambient humidity and board storage — Board stored in high-humidity conditions carries excess moisture before it enters the machine. When the adhesive is applied, the board cannot absorb additional moisture evenly. Maintaining consistent storage conditions and logging ambient relative humidity helps isolate whether warping is caused by the adhesive or by incoming board moisture.

Practical diagnostic steps:

• Measure board moisture content before production using a moisture meter. Compare incoming board lots.

• Check whether warping direction is consistent (always toward cover side or always away). Consistent direction points to adhesive moisture; inconsistent direction suggests board storage variability.

• Test with the same adhesive at reduced coat weight to see if warping severity changes. If it does not, the issue is likely board moisture, not adhesive.

• Allow finished cases to condition for 24–48 hours before final flatness inspection. Some temporary warping relaxes after full cure.

Defect 2: Cover Bubbling and Tunneling

What it looks like: Raised areas or visible air channels under the cover material surface. Bubbles may be pinhead-sized or large enough to see as ripples. Foil and soft-touch laminated covers show these defects more readily than matte paper covers.

Root cause chain:

Bubbling occurs when air is trapped between the cover material and the grey board, and the adhesive skins over or sets before that air can escape. The problem is most common on larger covers because air must travel a longer distance to reach the edge.

Three factors control air release:

1. Adhesive open time — Open time is the window during which the adhesive remains tacky and flowable enough to allow air to escape. If open time is too short, the adhesive surface locks before trapped air can migrate to the edges. Case-making formulations typically offer an adjustable open time in the range of roughly 2–10 seconds. If your line runs at higher speed, open time must be long enough to accommodate the material combination without sacrificing bond strength.

2. Roller pressure and flatness — Insufficient pressure during the bonding pass does not push trapped air toward the edges. Uneven roller pressure creates zones where air accumulates. Check roller condition and calibration regularly.

3. Cover material air permeability — Cloth and uncoated paper release air more readily than foil laminates, PVC, or soft-touch films. If you switch from paper to foil or soft-touch cover material without adjusting adhesive open time and roller pressure, bubbling is likely to appear.

Practical diagnostic steps:

• If bubbling appears only on large covers, the open time is likely too short for the air travel distance.

• If bubbling appears in the same zone of every case, check roller pressure uniformity and bottom mold flatness.

• If bubbling appears after switching cover material, verify whether the new material requires different adhesive wetting or open time settings.

• Try adding a sponge layer to the bottom mold or an intermediate cross arm on the nozzle plate to improve air escape on large-format covers.

Defect 3: Corner Lift and Edge Popping

What it looks like: The cover material lifts at corners or along the spine edge after the case has cooled and stabilized. The defect may not be visible immediately after wrapping—it often appears after the case sits for several hours or after downstream handling.

Root cause chain:

Corner lift has two main causes: insufficient adhesion at the wrap and material memory.

1. Wrap margin too small — The turned-in margin (the amount of cover material folded over the board edge) needs to be sufficient to create a lasting bond. In practice, a normal wrapping position is around 15 mm. Margins below this threshold are prone to popping, especially with thicker or stiffer cover materials.

2. Surface energy mismatch — Foil, soft-touch laminates, and certain coated papers have low surface energy. Adhesive that works on plain paper may not wet and bond properly to these surfaces. The adhesive must be matched to the cover material's surface chemistry, not just its thickness.

3. Grey board edge quality — If grey board is cut with a guillotine rather than a slitter, the cut edge may have an uneven cross-section (a “knife edge”) that prevents the cover material from wrapping tightly. This creates a loose or hollow edge that develops into corner lift during handling.

Practical diagnostic steps:

• Measure the wrap margin on cases that show corner lift. Compare against the specification for your cover material thickness.

• Verify grey board cutting method. Switch to a slitter if guillotine edges are consistently uneven.

• Test the same adhesive on a plain paper cover versus the problem cover material. If the plain paper bonds but the problem material does not, the issue is surface energy mismatch.

• Check whether corner lift appears on all corners or only specific ones. Asymmetric lift suggests mechanical alignment issues rather than material problems.

The Material-Process Interaction Table

The table below summarizes how different cover materials interact with key process variables. This is a reference framework, not a universal specification—exact settings must be confirmed through testing on your specific machine and material combination.

Key implication: If your production mix includes both plain paper and foil covers, you cannot use identical adhesive and machine settings for both without accepting quality trade-offs. Either maintain separate parameter presets or choose an adhesive formulated for the broader range of surface energies in your portfolio.

Environmental Conditions: The Hidden Variable

Temperature and humidity affect every step of the case making process. Adhesive viscosity, open time, board moisture content, and cover material dimensional stability all shift with ambient conditions.

A controlled production environment of 18–24 °C with stable humidity supports consistent adhesive behavior and reduces the amount of glue required for the same bond quality. In uncontrolled environments, seasonal variation can cause a process that works perfectly in winter to fail in summer.

Practical controls:

• Log ambient temperature and relative humidity at the start and middle of each production shift.

• Store grey board and cover materials in the same conditioned space as the production floor for at least 24 hours before use.

• When moving between seasons, re-validate adhesive open time and roller pressure settings rather than assuming the previous parameters still apply.

Quality Inspection Checklist

Use the following checklist at the start of each production run and periodically during the run.

Incoming Material Checks

• Grey board caliper verified against specification (typically 1.5–4.0 mm)
• Grey board moisture content measured and within acceptable range for your process
• Cover material GSM verified
• Cover material surface type confirmed (paper / cloth / foil / soft-touch)

Machine Setup Checks

• Adhesive batch and solids content confirmed
• Open time setting appropriate for cover material and line speed
• Roller pressure uniform across width
• Bottom mold flatness verified
• Glue tray and rollers clean, no buildup

Environmental Checks

• Ambient temperature within 18–24 °C
• Humidity stable compared to previous run
• Material storage conditions consistent

Output Inspection (at start and every 30–60 minutes)

• Cases laid flat after cooling—no visible cupping or bowing
• Cover surface smooth—no bubbles or tunneling visible under angled light
• Corners wrapped tight—no lifting or spring-back
• Spine edge clean—no adhesive squeeze-out or gap

When to Bring in Technical Support

Some case making defects can be resolved through parameter adjustment and material changes. Others indicate a need for equipment-level review or technical consultation.

Consider engaging with your equipment supplier or technical advisor when:

• Defect patterns change after a material supplier switch and parameter adjustment does not resolve them.

• The same defect appears across multiple material combinations and line speed settings.

• Corner lift persists despite correct wrap margins and verified board edge quality.

• Bubbling appears consistently only on large-format covers (above a certain size threshold).

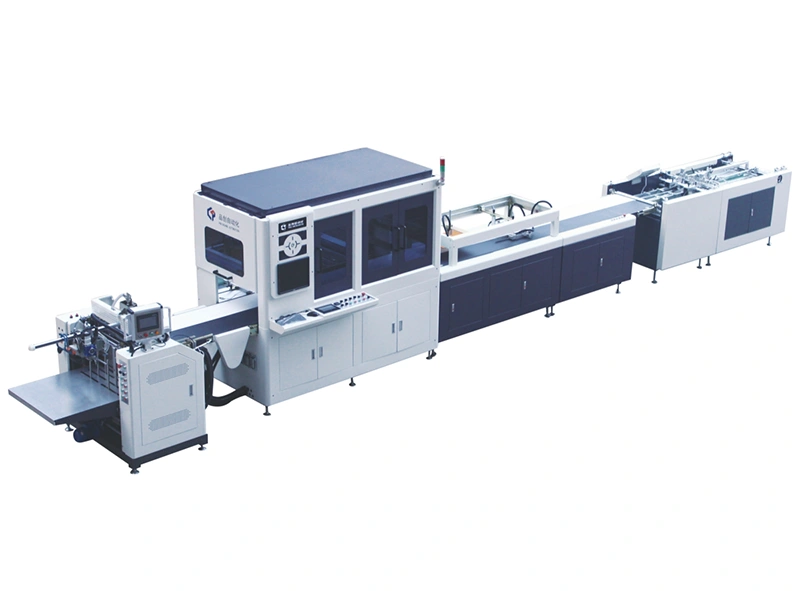

Reviewing the available case making configurations and their technical specifications helps clarify whether your current machine setup is aligned with your production requirements.

FAQ

Q1: Does grey board thickness affect warping more than adhesive type?
Both matter, but their effects differ. Thicker board (3.0–4.0 mm) resists warping better because the unglued side provides more counter-force against moisture-induced swelling. However, even thick board will warp if the adhesive moisture load is high enough. The most effective approach is to reduce adhesive moisture and ensure board moisture content is stable before production.

Q2: Can I use the same adhesive for cloth covers and foil covers?
Not without qualification testing. Cloth covers are porous and release air readily. Foil covers have low surface energy and trap air. An adhesive that works well on cloth may not wet foil properly, and an adhesive formulated for foil may have open time characteristics that are too short for cloth. If your portfolio includes both, look for adhesives rated for a broader surface energy range and maintain separate parameter presets.

Q3: Why does warping sometimes not appear until hours after the case is made?
Warping develops as the adhesive cures and releases moisture over time. Immediately after the case exits the machine, the board is still in a transient moisture state. The full warping effect becomes visible after 24–48 hours of conditioning at room temperature. This is why final flatness inspection should be conducted after conditioning, not immediately off the line.

Q4: What is the minimum wrap margin for hardcover case making?
A wrap margin around 15 mm is a commonly referenced practical minimum for most cover materials. However, thicker or stiffer cover materials may require a larger margin to achieve reliable corner bonding. The appropriate margin should be confirmed with your machine supplier based on your specific cover material specification.

Q5: How often should case making machine rollers be cleaned?
Rollers should be inspected and cleaned at each production start-up. Adhesive buildup on rollers mimics the appearance of warping by creating uneven adhesive laydown. During long production runs, check rollers at regular intervals—every 2–4 hours depending on adhesive type and production speed.

Q6: Can corner lift be fixed after the case is made?
Corner lift that has developed after curing cannot be reliably fixed through re-pressing. The adhesive has already set, and re-activating it with heat or solvent risks damaging the cover surface. Prevention through correct wrap margin, matched adhesive, and proper board edge preparation is the only reliable approach.

Conclusion

Hardcover case making defects—warping, bubbling, and corner lift—each have identifiable root causes, and effective resolution depends on accurate diagnosis before adjustment. The most important principle is to isolate the defect pattern first, then trace it through the material-process interaction chain: adhesive moisture and open time, grey board moisture and caliper, cover material surface energy, and environmental conditions.

Avoid the common mistake of adjusting multiple variables simultaneously. Change one factor at a time, document the result, and build a process window that reflects your specific material combination and production environment.

When material suppliers change, when seasonal conditions shift, or when defect patterns do not respond to parameter adjustment, technical confirmation with your equipment supplier helps determine whether the issue lies in machine configuration, material specification, or both. Reviewing the technical specifications for your case making equipment provides a useful starting point for that conversation.
