PC-8040A

Automatic Double Rigid Box Making Machine

Produce both lid and base with Yamaha Vision positioning system for high precision and fast size changeovers.

Max double positioning max
L350*W200*H80mm
Max. box size
L500*W400*H120mm
Production speed
20-44Pcs/min

Automatic Double Rigid Box Making Machine

Product Introduction

PC-8040A is a high-end automatic dual-station rigid box making machine designed for high-volume production. Equipped with Yamaha robot and vision positioning system, it can produce lid and base at the same time with high accuracy and fast changeover.

Product Features

Dual-Station Operation

The lid and base are produced at the same time, doubling operational efficiency.

Yamaha Vision Positioning

Incorporates a Yamaha robot with vision system for high-precision assembly.

Fast Size Changeover

Enables quick adjustments to accommodate multi-size and batch orders.

High-Output Automation

Delivers stable, high-volume production with reduced labor for long-running operations.

Workstation Detail Diagram

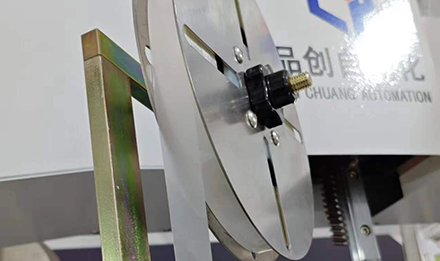

Corner Tape

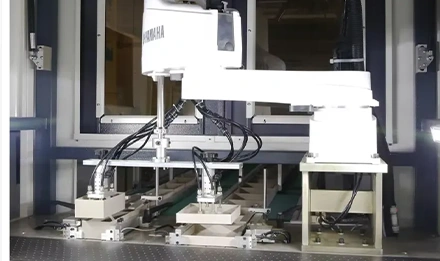

Yamaha Robot

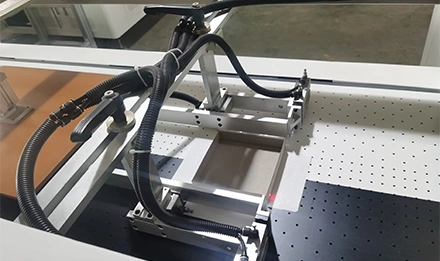

Rectify

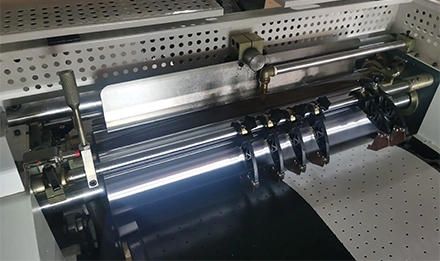

Glue

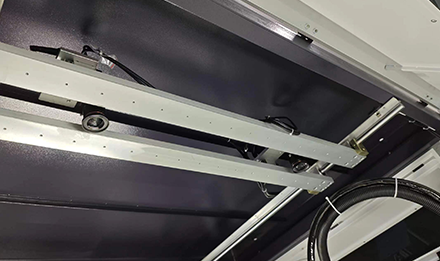

Camera

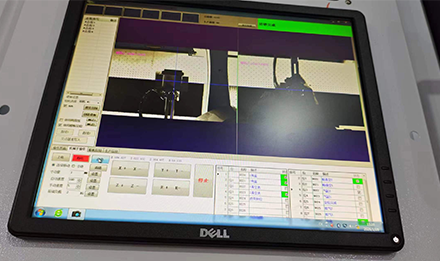

CCD（Visual Positioning System）

CCD（Visual Positioning System）

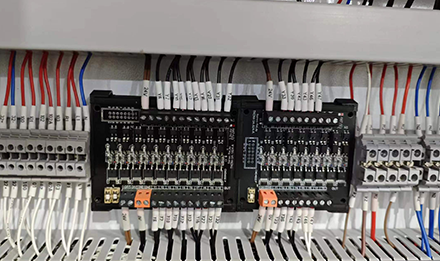

Circuit diagram

Circuit diagram

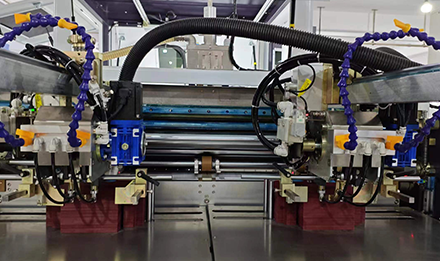

Double Feeder

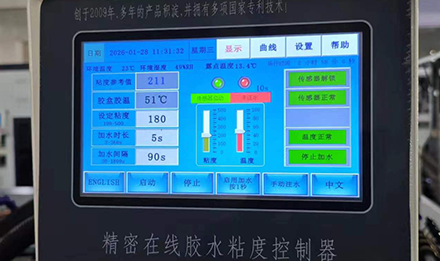

Gluing Viscosity Machine

Gluing Viscosity Machine

Technical Specifications

Model	PC-8040A
Paper size	L120mm-1000mm W80mm-780mm
Paper thickness	80-300g/m²
Box double fixed maximum size	L350W200H80mm
Maximum box size	L500W400H120mm
Minimum box size	L65W65H15mm
Production speed	20-44Pcs/min
Positioning accuracy	±0.1mm
Motor power	8KW/380V 3Phase
Gas source requirements	10L/min 0.8MPa
Machine weight	1500KG
Machine dimensions	L7600W7200H2150mm

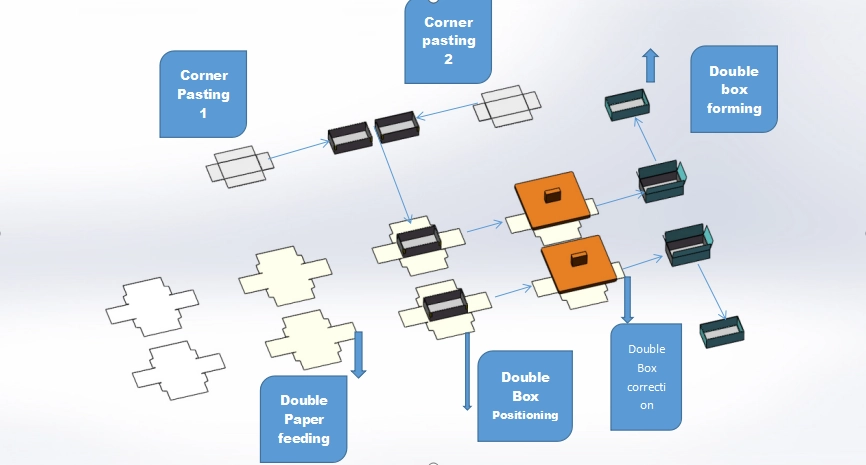

Production Flow

Automatic Double Rigid Box Making Machine Production Flow

Applications

This means PC-8040A can make two different size rigid box making in one line. This will improve the production efficiency especially for the jewelry box, mobile phone box, sweet box etc.

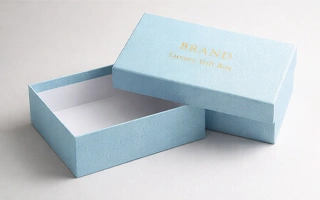

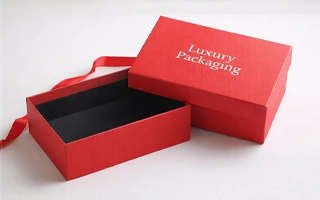

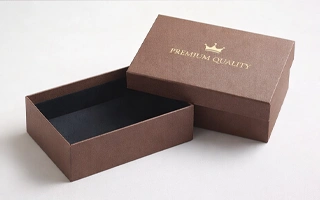

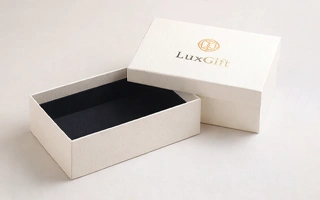

Rigid Box

Rigid Box

Rigid Box

Rigid Box
